Qseal

FIbre Optic

Features

  • 2Ch / 4Ch Pin & Socket Push-Pull Physical Contact Connector System

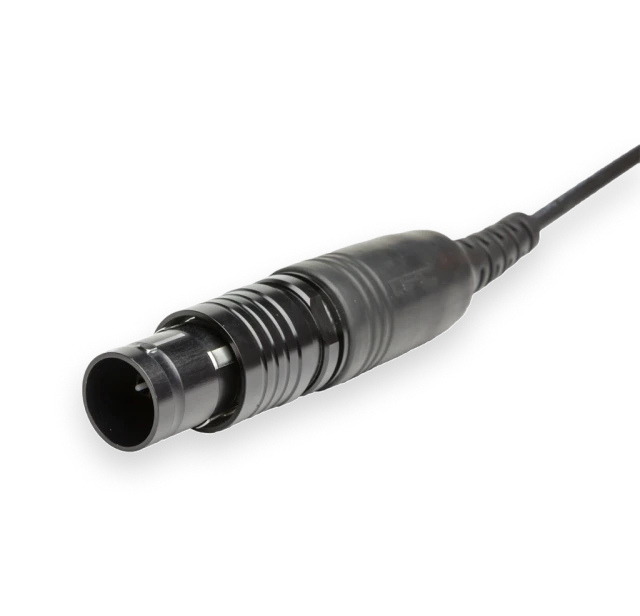

  • Plugs: With and without Rubber Grip, with Straight or 90 Degree Backshell
  • Receptacles: XLR Compatible Flange Mount with direct LC Duplex Connection on the back
  • Cable OD up to 6.5mm (Consult QPC for other options)
  • Intermateability: Neutrik OpticalCon Duo (2Ch) and OpticalCon Quad (4Ch)
  • QLine Adapter allows Plug to Plug Connections in longer systems
  • Sealed to IP67

Qseal

Description

The QPC QSeal Connector line features 2 and 4 Channel Push-Pull Plugs that are IP67 Sealed (Dust Tight & Water Immersion to 1 Meter), and direct LC-Duplex interface panel mount receptacles. This allows simple integration into SFP Module based systems, because standard off-the-shelf patch cables can be used. QSeal plugs are available with standard straight backshells as well as 90-degree backshells for applications with limited clearance. QSeal Receptacles can be ordered with five different color-coded sealing gaskets for network visibility. QSeal connectors are designed using industry standard 1.25mm ceramic ferrules which can be installed in a customer’s facility or in the field using common fiber optic termination equipment. Based on user feedback, QPC’s design does not include shutters enabling easy cleaning, inspection, and maintenance.
