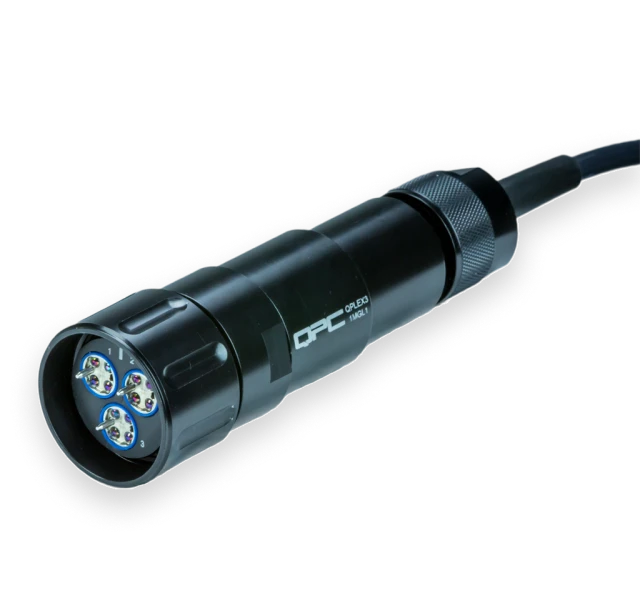

Qplex
Qplex - Image 2

Features

  • 2Ch – 24Ch Threaded Modular Expanded Beam Connector System
  • Plugs: Three, Four, and Six Insert Positions with Straight Backshells
  • Receptacles: Three, Four, and Six Insert Positions, Jam Nut and Flange Mount, with or without Backshells
  • Standard Cable OD up to 11.5mm for QPlex3 / QPlex4
  • Standard Cable OD up to 17.5mm for QPlex6
  • Sealed to IP68

Specification Sheet

pdf iconQplex Specification SheetDownload

Diamond Defence’s QPlex Expanded Beam Fibre Optic Connectors are modular 2-24 Channel connectors featuring all the benefits of Diamond Defence’s existing expanded beam connectors in a larger and more rugged shell. To achieve higher channel counts, QPlex Connectors hold multiple QMicro optical inserts, the larger housings can hold 3, 4, or 6 of these inserts.
